High Power Programmable AC Power Source AFV+ Series

The AFV＋series is a high power programmable AC power source utilizing advanced PWM technology to deliver power with THD ≦ 0.5% and up to 2000kVA.
The output frequency is 45~120Hz with accuracy of ± 0.02%, and user can select 45~500Hz or 300-840Hz option to expand the frequency. The AFV＋ series can cover applications for home appliance, motor, medical equipment, lighting and EMC laboratory.

產品諮詢 Inquiry
  • AC Power Corp.(Preen)

    Overviews

  • AC Power Corp.(Preen)

    Specifications

  • AC Power Corp.(Preen)

    Key Features

  • AC Power Corp.(Preen)

    Ordering Info

  • AC Power Corp.(Preen)

    Documentation

  • AC Power Corp.(Preen)

    Videos

Preen AC Power Corp.

AFV＋series

The AFV+ series is a high power programmable AC power source utilizing advanced PWM technology to deliver power with THD ≦ 0.5% and up to 2000kVA. The output frequency is 45~120Hz with accuracy of ± 0.02%, and user can select 45~500Hz or 300-840Hz option to expand the frequency. The AFV+ series is ideal to simulate different region’s voltage and frequency conditions, and can cover applications for home appliance, motor, medical equipment, lighting and EMC laboratory.
The AFV+ series features STEP and RAMP programmable functions to easily simulate single or continuous output changes. Three phase independent adjustment, optional remote sensing and optional phase angle adjustment all provide convenient control to simulate different kinds of line disturbance. For remote control, the AFV+ series has standard RS-232, RS-485 & Ethernet interface card and optional GPIB and Analog interfaces for easy setup and programming.


  • Up 2000kVA
    High Power Density with compact size
    1 Phase: 10kVA~150kVA
    3 Phase: 10kVA~2000kVA
  • ≦0.5%
    Low Total Harmonic Distortion
  • ≦0.5%
    Low Load Regulation
  • 0-310V
    Wide Output Voltage Range
  • 45-500Hz
    Wide Output Frquency Range(option)
  • Voltage & Angle
    Three Phase Independent Adjustment & Phase Angle Control
Intuitive 7”Touch Screen

Intuitive 7”Touch Screen

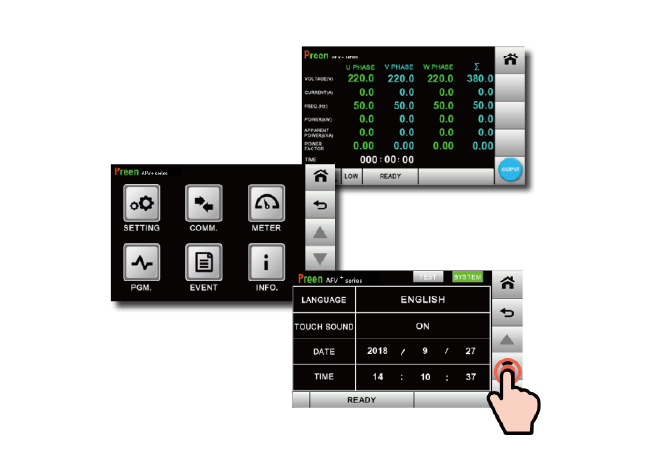

The AFV＋ series employs 7"touch screen to provide intuitive and easy-to-use control and display. Users can quickly access output settings and measurements, including voltage, current, frequency, real power, apparent power, PF and sum of each phase's parameters. Complex sequences and system configurations can also be easily done via the touch screen.

Three Phase Independent Adjustment & Phase Angle Control

Three Phase Independent Adjustment & Phase Angle Control

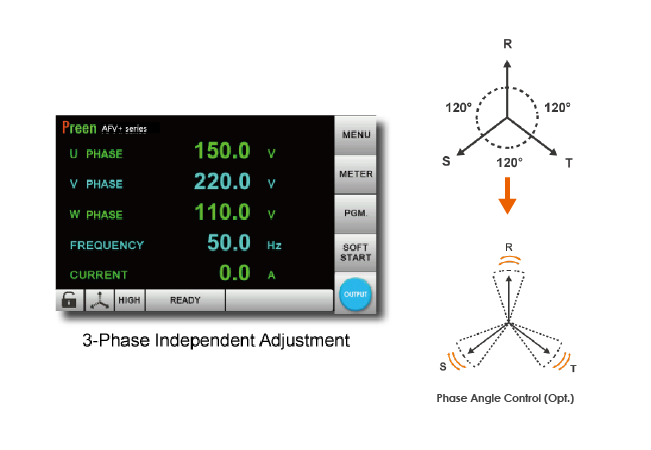

The Three Phase Independent Adjustment feature of the AFV＋ series can simulate advanced power line disturbance, such as three-phase voltage unbalanced. User can press the icon on the main page of the touch screen to quickly switch from balanced voltage setting to independent voltage adjustment setting. Optional Angle Control is also available to simulate phase shift for different power conditions.

RAMP and STEP Programming Features

The AFV＋ series’ RAMP feature has up to 12 sequences available with parameters of voltage, frequency and time, and the STEP feature has up to 24 sequences available with parameters of voltage, frequency and time. These features provide an easy method to simulate different kinds of power line disturbance.

Remote Control Software:Preen Program

Remote Control Software: Preen Program

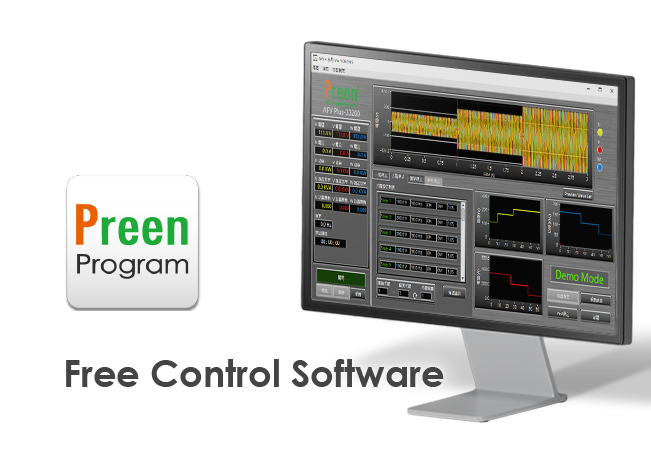

The AFV＋ series offers complimentary remote control software, Preen Program. This graphical user interface provides easy settings and user-friendly configurations for users to fully control the unit. The Preen Program includes GENERAL mode or PROGRAMMABLE mode with STEP and RAMP features available. The preview waveform and report functions also greatly enhance convenience for review parameters and results before or after testing.

The AFV+ series is a high-power programmable AC power source utilizing advanced PWM technology to deliver power with THE ≦0.5% and up to 2000kVA. The output frequency is 45-120Hz with accuracy of ±0.02%, and users can select 45-500Hz option to expand the frequency. The AFV+ series is ideal to simulate different regions' voltage and frequency conditions and can cover applications for home appliances, motors, medical equipment, lighting, and EMC laboratory.

Specifications
  • Output Power

    Single-Phase: 10kVA~ 150kVA
    Three-Phase: 10kVA~ 2000kVA


  • AC Output Voltage

    0~155V (Valtage Ranges Low)
    0~310V (Valtage Ranges High)


  • Output Frequency

    Type A:45-500Hz
    Type B:45-120Hz
    Type C: 300~840Hz

  • Total Harmonic Distortion(THD)

    ≦ 0.5% (Resistive Load)

  • Load Regulation

    ≦ 0.5% (Resistive Load)

  • Interface
    • RS232
    • RS485
    • Ethernet
    • GPIB (Optional)
    • Analog (Optional)

  •

    • Wide Output Power Range: 10kVA~2000kVA.
    • Optional 0-400V (L-N) or 0-600V(L-N) output voltage.
    • With standard remote sensing function, user can avoid voltage drop easing.
    • CE and RoHS certified.
    • The 7” touch screen shows parameters of voltage, current, frequency, real power, apparent power and sum of each phase’s parameters.
    • The soft start function can effectively reduce inrush current caused by motor startup.
    • Via the Three Phase Independent Adjustment function, the AFV+ series can deliver each phase voltage differently to multiple single-phase DUTs.
    • User can simulate phase shift with the optional Phase Angle Adjustment function.
  • Wide Output Power Range: 10kVA~2000kVA.
  • Optional 0-400V (L-N) or 0-600V(L-N) output voltage.
  • With standard remote sensing function, user can avoid voltage drop easing.
  • CE and RoHS certified.
  • The 7” touch screen shows parameters of voltage, current, frequency, real power, apparent power and sum of each phase’s parameters.
  • The soft start function can effectively reduce inrush current caused by motor startup.
  • Via the Three Phase Independent Adjustment function, the AFV+ series can deliver each phase voltage differently to multiple single-phase DUTs.
  • User can simulate phase shift with the optional Phase Angle Adjustment function.

Model Number Description
  • AFV-PLUS-31010 High Power Programmable AC Power Source Single-Phase(10kVA/310V)
  • AFV-PLUS-31015 High Power Programmable AC Power Source Single-Phase(15kVA/310V)
  • AFV-PLUS-31020 High Power Programmable AC Power Source Single-Phase(20kVA/310V)
  • AFV-PLUS-31030 High Power Programmable AC Power Source Single-Phase(30kVA/310V)
  • AFV-PLUS-31045 High Power Programmable AC Power Source Single-Phase(45kVA/310V)
  • AFV-PLUS-31060 High Power Programmable AC Power Source Single-Phase(60kVA/310V)
  • AFV-PLUS-31075 High Power Programmable AC Power Source Single-Phase(75kVA/310V)
  • AFV-PLUS-31100 High Power Programmable AC Power Source Single-Phase(100kVA/310V)
  • AFV-PLUS-31120 High Power Programmable AC Power Source Single-Phase(120kVA/310V)
  • AFV-PLUS-31150 High Power Programmable AC Power Source Single-Phase(150kVA/310V)
  • AFV-PLUS-001 Type A: Output Frequency 45-500Hz
  • AFV-PLUS-002 Type B: Output Frequency 45-120Hz
  • AFV-PLUS-003 Type C : Output Frequency 300-840Hz
  • AFV-PLUS-004 Start Angle 0-359°
  • AFV-PLUS-005 Overload Capability 200% 2 sec, 150% 5 sec, 125% 15 sec
  • AFV-PLUS-006 Fast Voltage Response Option (with Time Setting Resolution 0.01S)
  • AFV-PLUS-007 Analog Control Interface
  • AFV-PLUS-008 GPIB Interface
  • AFV-PLUS-012 Input Voltage 200V
  • AFV-PLUS-013 Input Voltage 208V
  • AFV-PLUS-014 Input Voltage 240V
  • AFV-PLUS-015 Input Voltage 400V
  • AFV-PLUS-016 Input Voltage 480V
  • AFV-PLUS-017 Output Voltage 0-400V(L-N)
  • AFV-PLUS-018 Output Voltage 0-600V(L-N)
  • AFV-PLUS-019 400 Hz Fixed
  • AFV-PLUS-020 RS-232/RS-485/USB/Ethernet Interface
  • AFV-PLUS-33010 High Power Programmable AC Power Source Three-Phase(10kVA/310V)
  • AFV-PLUS-33015 High Power Programmable AC Power Source Three-Phase(15kVA/310V)
  • AFV-PLUS-33020 High Power Programmable AC Power Source Three-Phase(20kVA/310V)
  • AFV-PLUS-33030 High Power Programmable AC Power Source Three-Phase(30kVA/310V)
  • AFV-PLUS-33045 High Power Programmable AC Power Source Three-Phase(45kVA/310V)
  • AFV-PLUS-33060 High Power Programmable AC Power Source Three-Phase(60kVA/310V)
  • AFV-PLUS-33075 High Power Programmable AC Power Source Three-Phase(75kVA/310V)
  • AFV-PLUS-33100 High Power Programmable AC Power Source Three-Phase(100kVA/310V)
  • AFV-PLUS-33120 High Power Programmable AC Power Source Three-Phase(120kVA/310V)
  • AFV-PLUS-33150 High Power Programmable AC Power Source Three-Phase(150kVA/310V)
  • AFV-PLUS-33200 High Power Programmable AC Power Source Three-Phase(200kVA/310V)
  • AFV-PLUS-33300 High Power Programmable AC Power Source Three-Phase(300kVA/310V)
  • AFV-PLUS-33400 High Power Programmable AC Power Source Three-Phase(400kVA/310V)
  • AFV-PLUS-33500 High Power Programmable AC Power Source Three-Phase(500kVA/310V)
  • AFV-PLUS-33600 High Power Programmable AC Power Source Three-Phase(600kVA/310V)
  • AFV-PLUS-33800 High Power Programmable AC Power Source Three-Phase(800kVA/310V)
  • AFV-PLUS-331000 High Power Programmable AC Power Source Three-Phase(1000kVA/310V)
  • AFV-PLUS-331200 High Power Programmable AC Power Source Three-Phase(1200kVA/310V)
  • AFV-PLUS-331500 High Power Programmable AC Power Source Three-Phase(1500kVA/310V)
  • AFV-PLUS-332000 High Power Programmable AC Power Source Three-Phase(2000kVA/310V)
  • AFV-PLUS-001 Type A: Output Frequency 45-500Hz
  • AFV-PLUS-002 Type B: Output Frequency 45-120Hz
  • AFV-PLUS-003 Type C : Output Frequency 300-840Hz
  • AFV-PLUS-004 Start Angle 0-359°
  • AFV-PLUS-005 Overload Capability 200% 2 sec, 150% 5 sec, 125% 15 sec
  • AFV-PLUS-006 Fast Voltage Response Option (with Time Setting Resolution 0.01S)
  • AFV-PLUS-007 Analog Control Interface
  • AFV-PLUS-008 GPIB Interface
  • AFV-PLUS-010 Three Phase Angle Adjustment
  • AFV-PLUS-012 Input Voltage 200V
  • AFV-PLUS-013 Input Voltage 208V
  • AFV-PLUS-014 Input Voltage 240V
  • AFV-PLUS-015 Input Voltage 400V
  • AFV-PLUS-016 Input Voltage 480V
  • AFV-PLUS-017 Output Voltage 0-400V(L-N)
  • AFV-PLUS-018 Output Voltage 0-600V(L-N)
  • AFV-PLUS-019 400 Hz Fixed
  • AFV-PLUS-020 RS-232/RS-485/USB/Ethernet Interface
No.
File
Size
Download
1 2024 AFV＋ Series High Power Programmable AC Power Source

  • How to Simulate North America 1Φ 3W Power System

  • Worldwide Electric Power System Simulation－ AFV+ Series
