AC Power Source/ Frequency Converter
AFC Series
AFC series can simulate standard or abnormal voltage and frequency status. The maximum output power is up to 2000kVA in one unit without parallel. The output voltage range is 0-310V, and the output frequency is adjustable between optional 45-65Hz continuously , and 45-65Hz, 100Hz / 120Hz / 200Hz / 240Hz / 400Hz. This series provides pure sine wave output, with single and three-phase output models which are suitable for various industries including home appliances, electrical electronics and medical equipment
Output Power
Single/Three Phase: 10kVA-2000kVA
Output Voltage
0-310V
Output Frequency
45- 65Hz
45-65, 100Hz / 120Hz / 200Hz / 240Hz / 400Hz (opt.)
Interface
Downloads
Friendly UI and Hot Key Group
The AFC series features a large touchscreen for precise parameter adjustments and remote control via RS-232 and RS-485 interfaces. The display provides real-time monitoring of voltage, current, and active power, with six customizable hotkeys for quick access to common settings. Additionally, the AFC series offers effortless switching between phase-to-phase and phase-to-neutral display with a single click.
Ideal Power Source for Various Industries
The AFC series AC power source is highly reliable and easy to operate, it has been widely applied in production line, quality assurance and design verification. The multiple levels of frequency and wide range of output voltage is ideal for applications requiring voltage and frequency conversations. The unit can also be applied as isolation between DUT and the grid to reduce the interference from each side. These features make the AFC series ideal for home appliance, EMC chamber, motor and electronic industries.
Remote Control Interface with Multiple Protections
AFC series comes with 7'' intuitive touch screen that can quickly setup and output through RS-232 and RS-485 interface. The complete protectionwill monitor UVP/OVP, OCP and OTP, promptly react to stop the output and disply warnings and error codes. This can also be done with manual emergency stop button to secure users' safety.
Complete Protections
The AFC series protection circuitry has fast response to detect error, alarm and shut down output if necessary. The protections include OVP, OCP, OPP, input OVP, OTP and short circuit. Each error has a corresponding error code to help diagnose the issues and shorten the repair time.

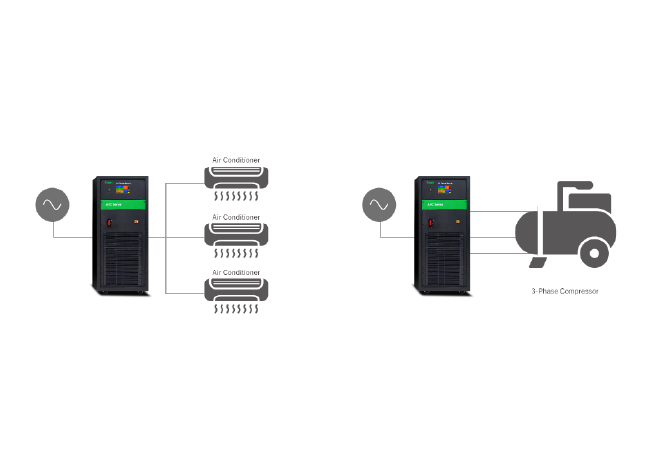

Applicable to 100% Unbalanced Load
For production line and laboratory of motor, compressor and appliance, the AFC series can simulate different countries' voltage and frequency to help the users to verify DUT' s reliability under different input power. The AFC series can also sustain unbalanced load conditions, which means it can power up to three single phase DUT or one three phase DUT. It can also be used as a power supply with isolation feature for power conditioning purpose. The AFC series is a versatile unit that can be applied into many applications.
